Replace Remote Receiver on F1 Unit

· One min read

To replace the remote receiver on a given F1 unit, follow the steps outlined below.

  1. Power down the F1 unit and remove the batteries.

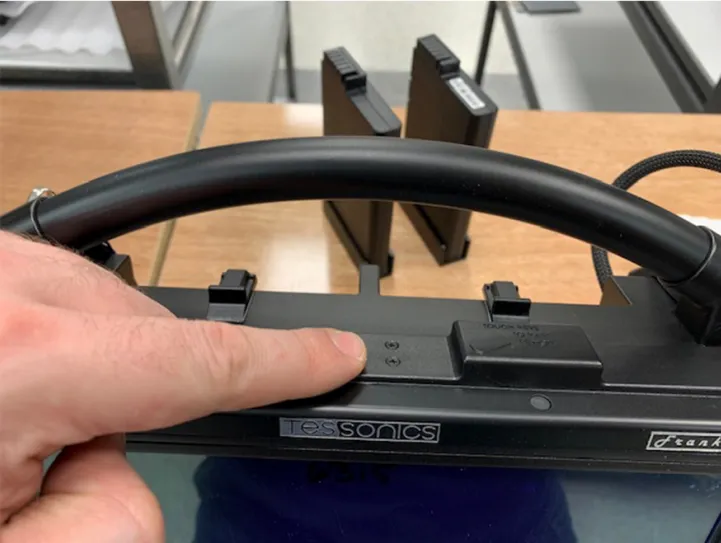

  2. Look for the small black screws on the upper plastic cap (shown below).

  1. Lay the F1 unit face-up on its back.
  2. Carefully remove the 2 small black screws.

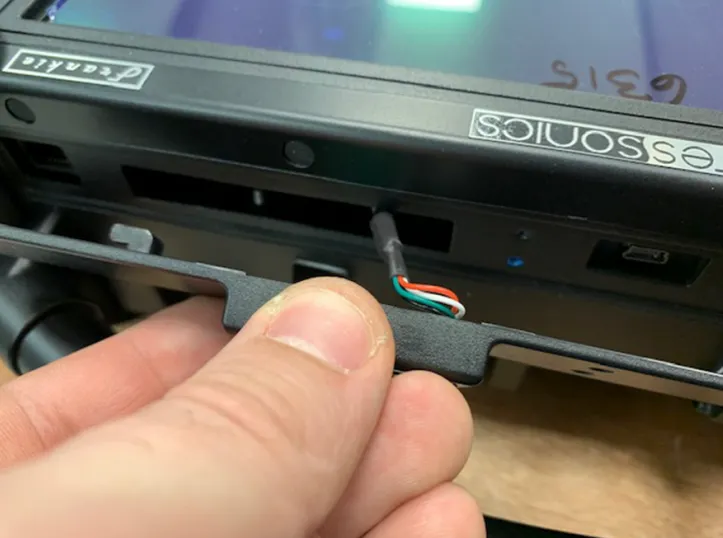

  3. Slide the plastic cap over. It should easily pop out.

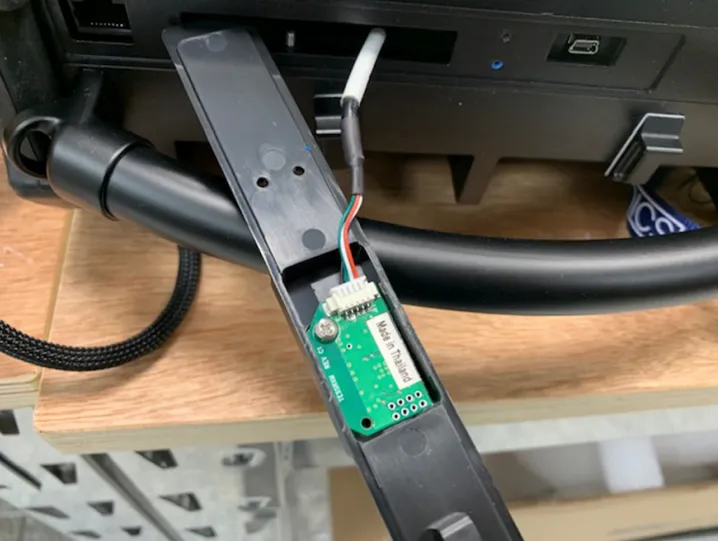

  1. Unscrew the remote receiver from the plastic cap.

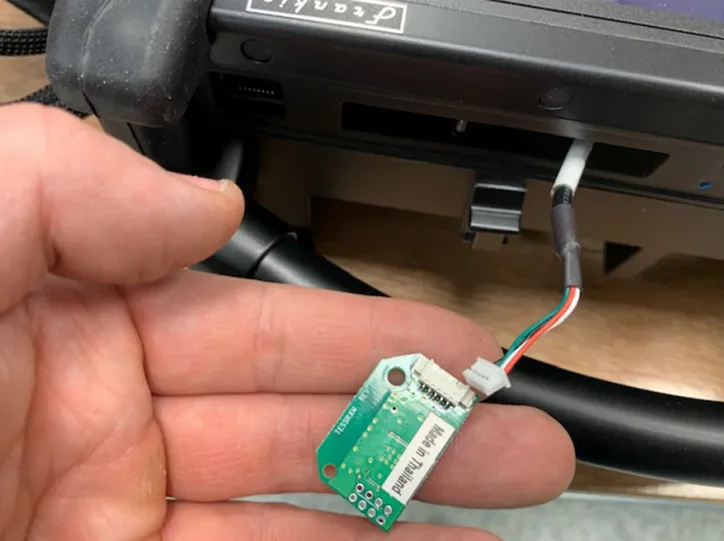

  1. Carefully remove the remote receiver from the connector.
  2. Replace with the new remote receiver. It should click nicely into place.
  3. Place the receiver back in the cap and re-secure the screw.

  1. Slide the plastic cap back into place.
  2. Re-secure the small black screws into the top of the unit. Be careful that the screws are not overtightened (be delicate with them).
  3. Pair the remote to the RSWA following the remote pairing instructions.
