Power Supply
Specification
| Specification | Value |
|---|---|
| Connector Type | M8, 4-pin |
| Supply Voltage | 24 V ± 2 V |
| Supply Current | 2 A, slow-blow fused1 |
| Power Draw (Typical) | <10 W |

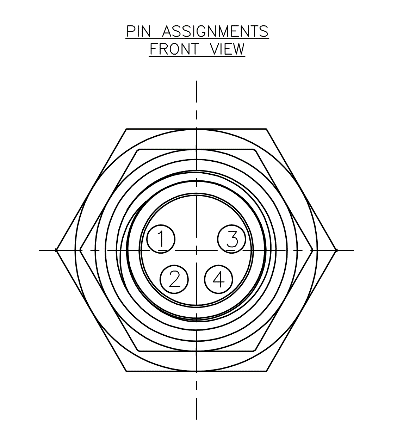

Pinout 2
| Pin No. | Name | Description |
|---|---|---|
| 1 | V+ | Positive voltage, nominal 24 V. |
| 2 | GPIO_0 | General-purpose I/O 0—Network Config Mode. |
| 3 | GND | Ground reference. |
| 4 | GPIO_1 | General-purpose I/O 1—Network Factory Reset. |
Notes
- The current consumption of the SRS controller can spike above 2 A for very brief periods, e.g., during startup. For this reason, it is recommended to use a slow-blow fuse on the power supply.
- This pinout corresponds to the standard wiring pinout typically used with M8 connectors for sensors or similar.
