PLC Configurations

Overview​

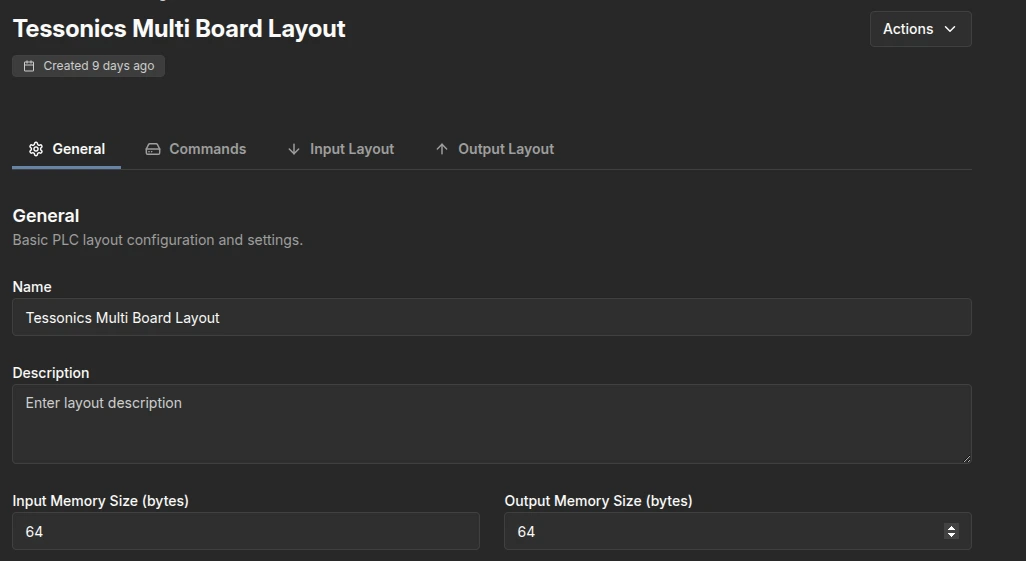

Inside PLC Configurations, you start by seeing a general settings page with some basic layout and configuration options. These include the Name, a Description, Input Memory size (in bytes), and Input Memory (in bytes).

plc

Configuring Commands​

Inside the setting called Command. You are able to create, remove, and edit commands.

command

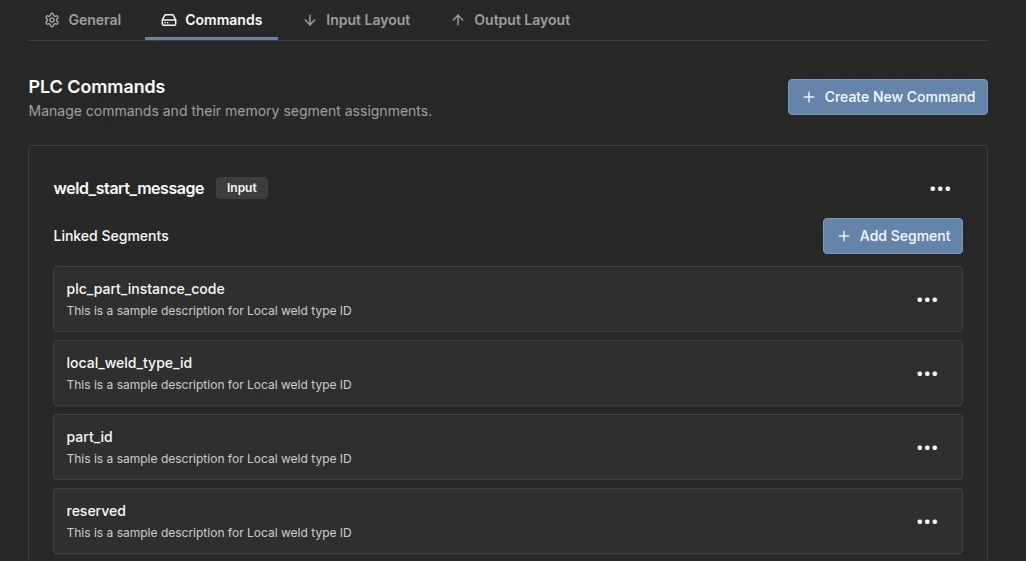

Editing commands gives you the option to add segments, edit the link to the command, or completely unlink the command.

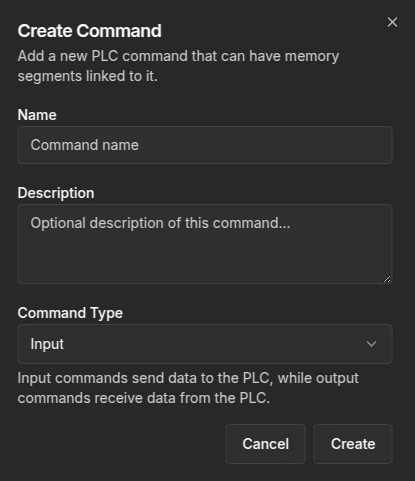

When creating a new command, you will be required to enter some basic information like the Name, a Description, and the Command Type.

create_command

Input and Output Layout​

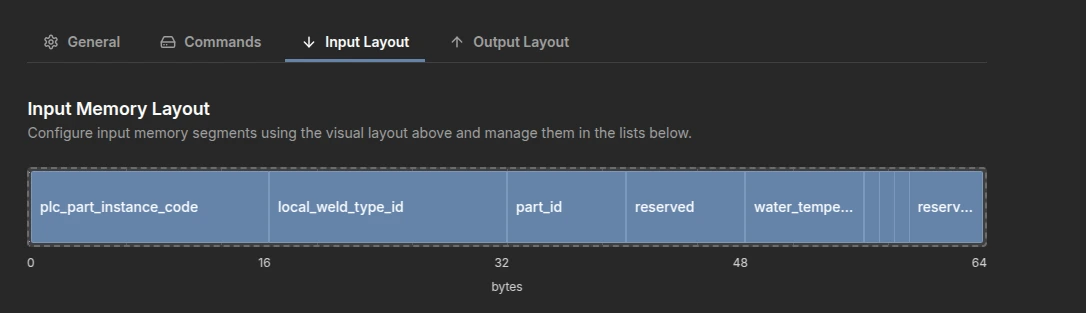

Now that you have properly configured your PLC commands with the appropriate segments, you are able to visually view and edit them inside the Input Layout and Output Layout section.

input

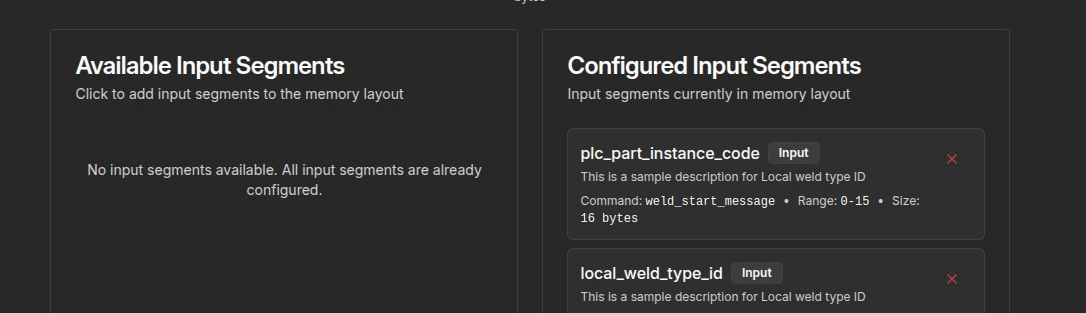

All of the configured inputs/outputs correspond to the commands you created previously and can be viewed underneath.

visual
