Part Summary

note

• Red indicates a bad weld
• Yellow indicates an acceptable weld
• Green indicates a good weld
• White indicates no weld was imaged

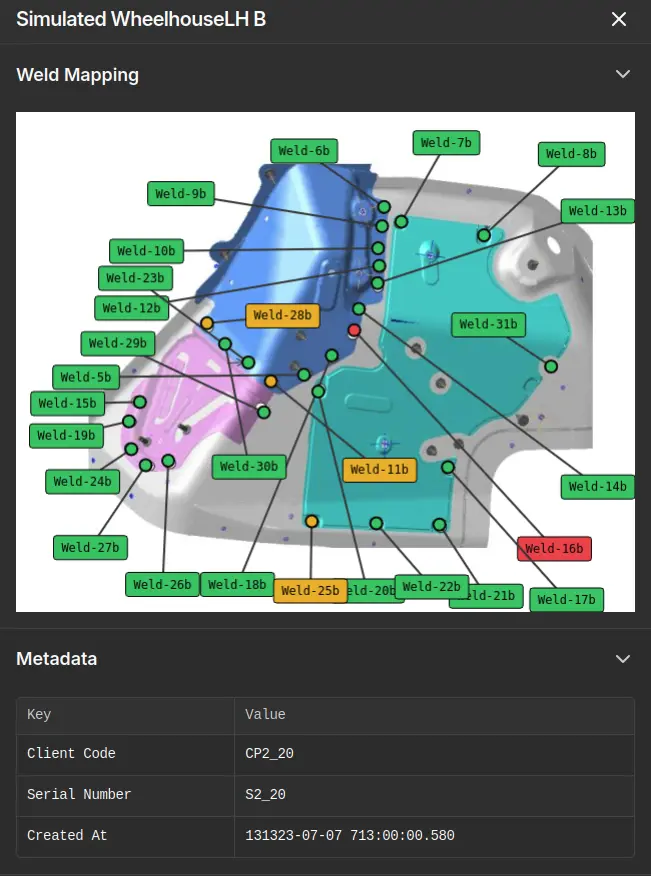

When clicking on the part name, you will be shown an image of the weld mapping. This provides a view of which weld was placed on which part, with an associated weld ID and a color representing the weld rating. In addition, you are provided with some useful metadata.
